Lotus Elan

my +2 130 project

PostPost by: mini90 » Mon Aug 10, 2020 9:07 am

Here I will share with you my project :

This is a LHD +2 130 1972' from portugal, imported to france in 1990 and still in project for 30 years...
Frame and engine are brand new but all other parts need work

I've just bougth the car last week and starting working on it

first I'm working to restart it and put it on the road with french MOT

In second time I'll dismantle and respray it

I think I will need you'r help !

(sorry for english approximative translation...)

looks good but paint is badely made and colours' not my cup of tea




interior need a little bit of work ,

wiring loom need attention (if anybody has a wiring diagram...it will be very interesting to me ! )


under boot is free...if anybody has photos of what it should be finished (is it a frame for trim panels ?)


if somewone telle me the first thing I had to do on a fiberglass car was to weld something .... :D
boot retainer repair :


and here I'm not sure how the window seal comes :

***********************************************my feet :D
see you soon !
mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Mon Aug 10, 2020 3:17 pm

Salut Mini90, Enchante a faire votre Elan (Excuse my French!!). Great to see the pictures, looks like you have taken on an interesting project.

This forum is excellent and will be a place you visit often, everything has been done in different ways and if you search the subject you are working on you will find the info. on the forum.

Someone might be able to direct you to a wiring diagram on the forum, but in the meantime I will check if I have the wiring diagram and will try to scan it for you (I should have it in the manual).

Good luck with the project, a prochain frois, Jonathan
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: nmauduit » Mon Aug 10, 2020 8:27 pm

Bonsoir,

and welcome aboard one of the best (to say the least) automotive forum this side of the planet... you'll find all the infos or advice you'll need for your project, and a lot more.

Do not hesitate to post about your progress, too...

Nic
S4SE 36/8198
User avatar
nmauduit
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 1550
Joined: 02 Sep 2013
Location: France

PostPost by: JJ66 » Tue Aug 11, 2020 7:10 am

Hi There,

I do have two wiring diagrams that should be useful for you, see below:

Wiring 1.jpg and


Wiring 2.jpg and


If you would like me to send the original high resolution pictures, please direct-message me with your e-mail and I will send.

Best Wishes, Jonathan
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: mini90 » Tue Aug 11, 2020 8:58 am

perfect !! i sent you a PM
mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: mini90 » Mon Aug 24, 2020 3:44 pm

Here is the update of last busy weekend !

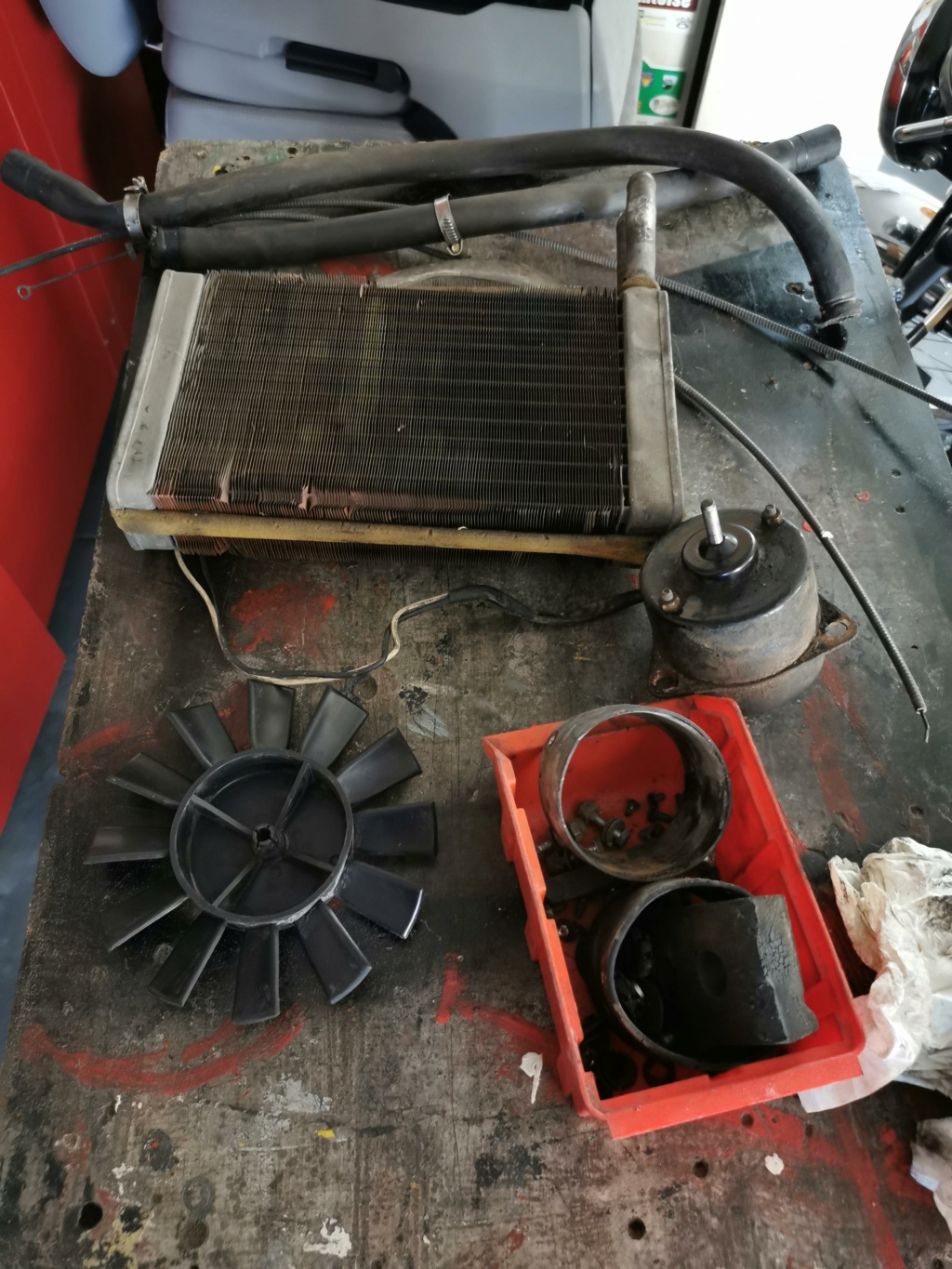

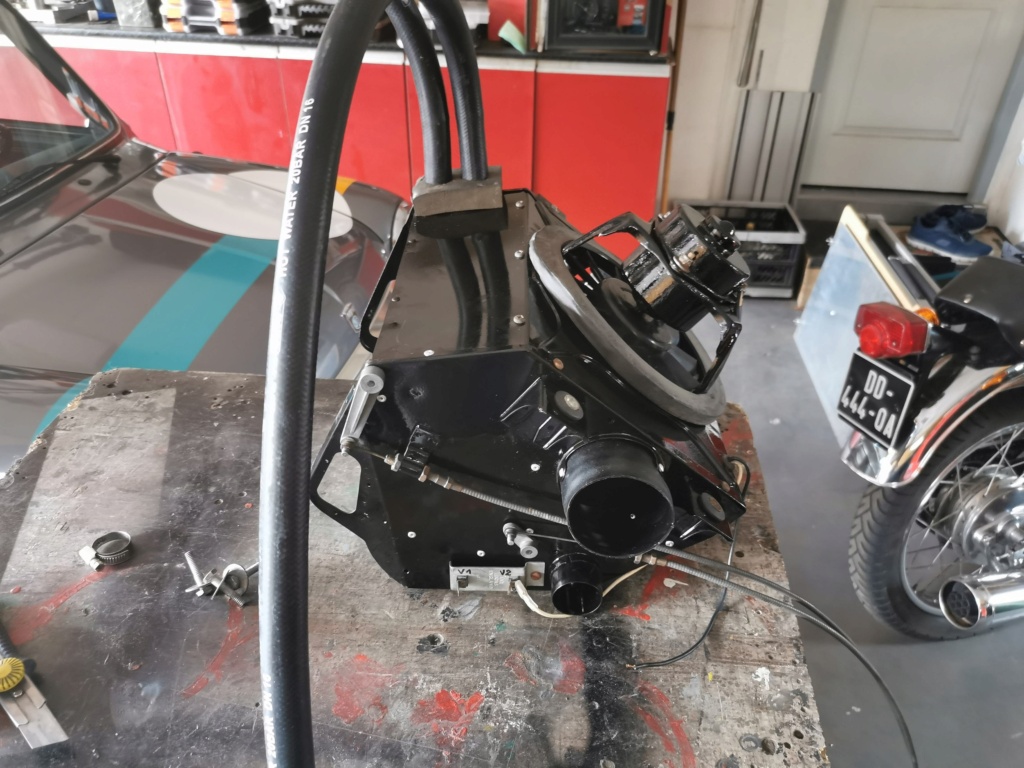

heater full rebuilt, it was not in so bad condition but with dashbord removed , it's easier to do it

sand blasting, primer and paint , and heater motor control (2 speeds)




new home made parts for underdash trim







dash gauges restoration with polytrol




new side fitting dashboards plates (home made)


and 1st parts received...

mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Mon Aug 24, 2020 4:15 pm

Nice job, you are making great progress!!
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: mini90 » Wed Aug 26, 2020 8:27 am

Finally I have made the heater controls, based on photos ...

Image[img][img]https://i95.servimg.com/u/f95/14/89/04/97/img_2034.jpg[/img][/img]
mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Wed Aug 26, 2020 9:21 am

Wow, good job! You have made a really nice fabrication there. You can hopefully find the plastic knobs that fit on the end of the steel lever. Keep a watch on e-bay or perhaps SJ Sportscars can supply them? The Original part number is 050B6078. SJ Sportscars list them for sale on their website at £3.91 each.

Regards, Jonathan
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: mini90 » Wed Aug 26, 2020 9:46 am

Yes Thanks
I've already ordered them!
mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Wed Aug 26, 2020 9:50 am

Excellent! It will look good! I have managed to find a genuine Lotus Parts Manual, so if you are ever having difficulty finding part numbers, let me know and I can look them up.

Regards, Jonathan
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: mini90 » Thu Sep 17, 2020 1:00 pm

some little news:

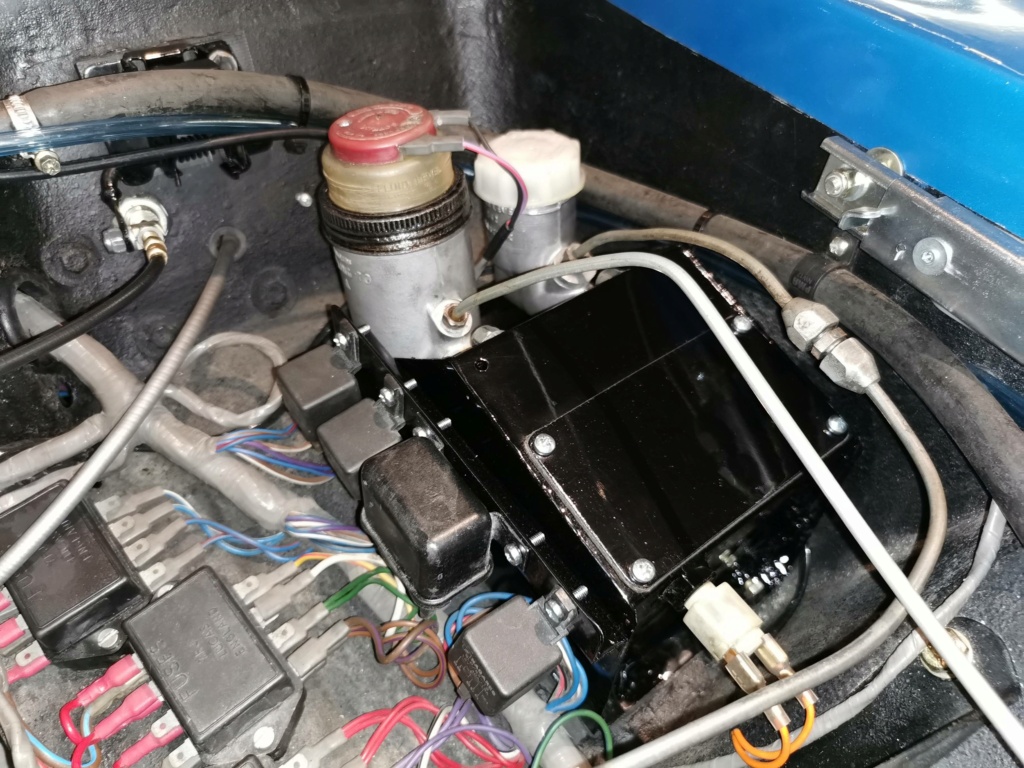

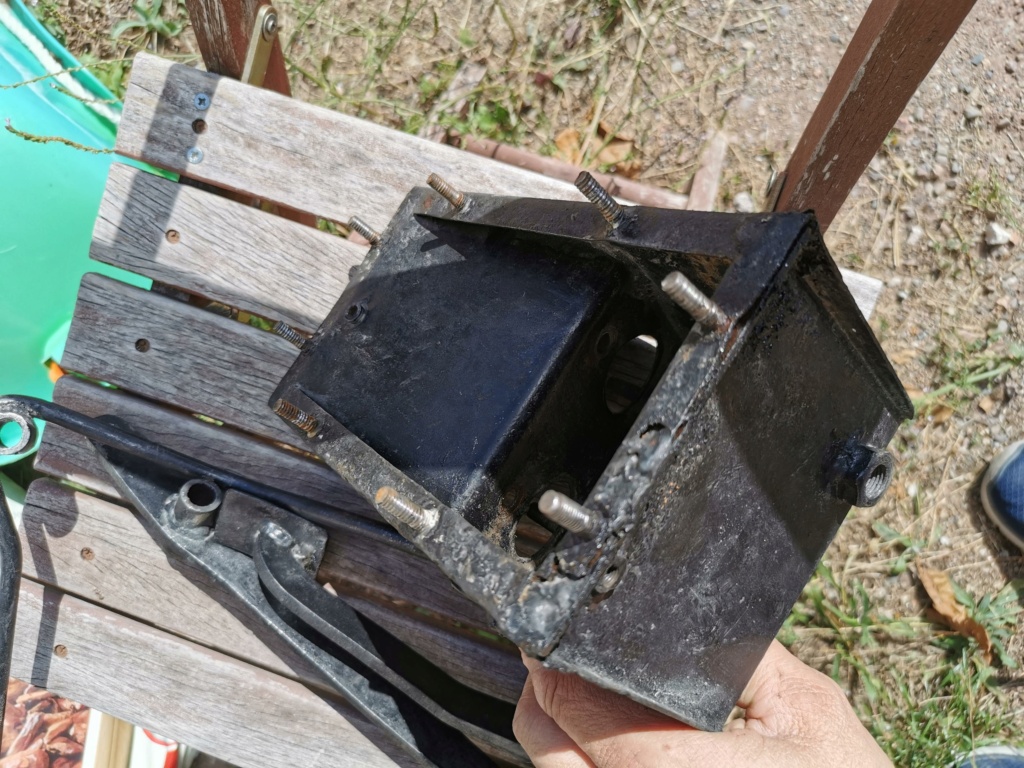

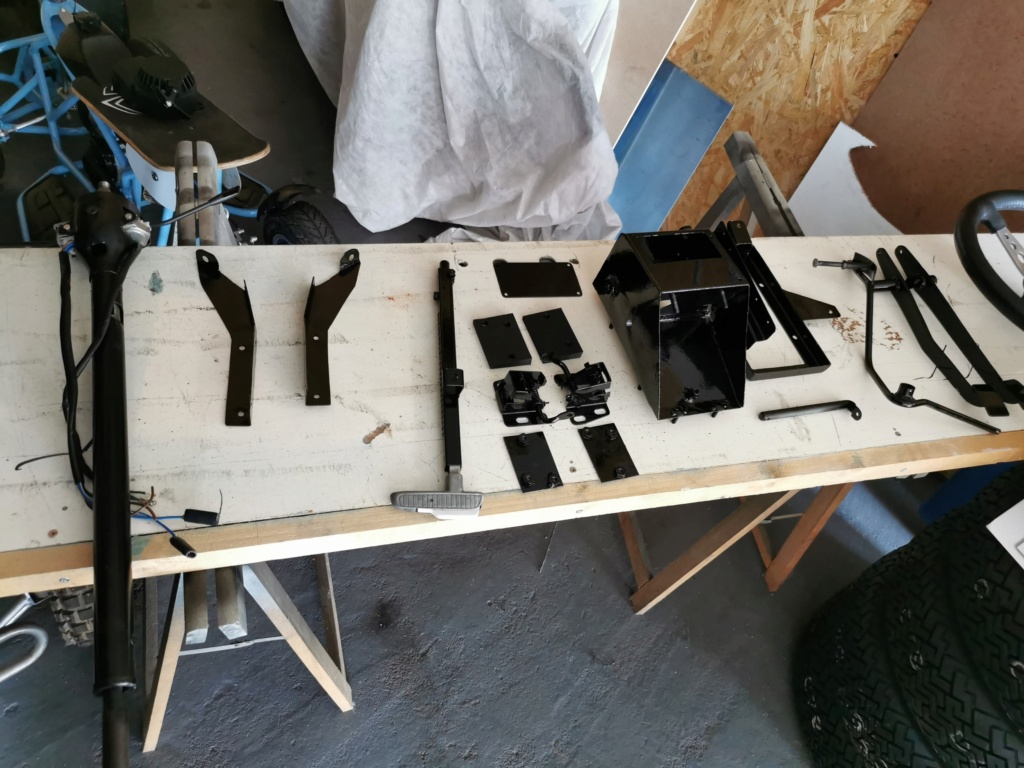

pedal box rebuilt, because of rust and missing parts : I hadden't got the handbrake bracket, I made it helping with part manuel pictures
I also made an acces to clevis pins and bracket for relays




bonnet locks systems have been sand blasted and resprays
i made new 3D printed angle parts instead of old wood parts


home made bonnet cable bracket

and for the dash , it's done too and ready to come back in the car :

mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Sat Sep 19, 2020 3:08 pm

Great progress. I like the 3-D printed bonnet catch supports, its a much nicer solution than the blocks of wood!!
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye

PostPost by: mini90 » Thu Oct 08, 2020 8:38 am

some little work again ...

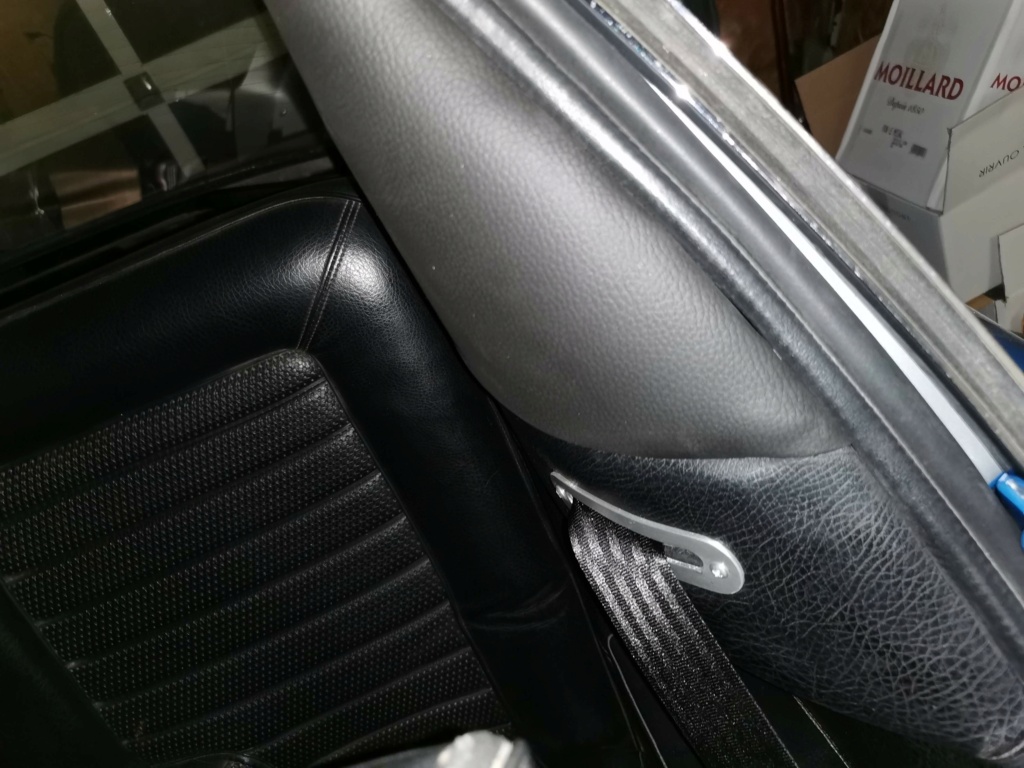

dashborad is back on the car, I made some allow caps for seatbelts holes in rear cards
...some sandblasting and painting job for radiator and brackets ...

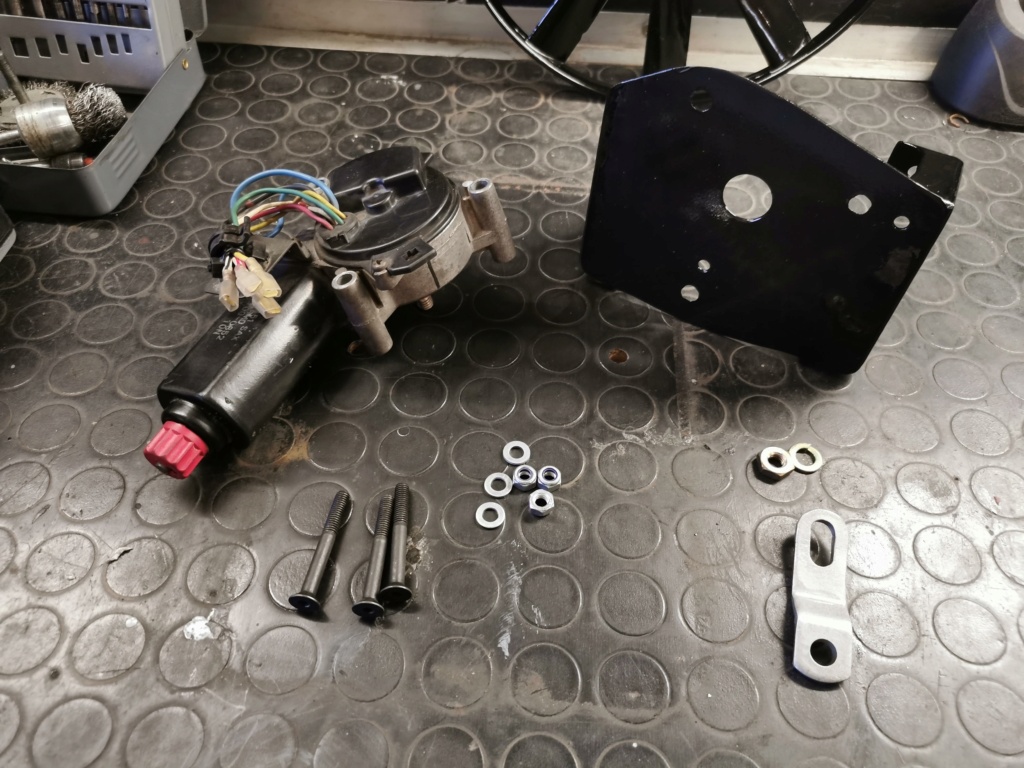

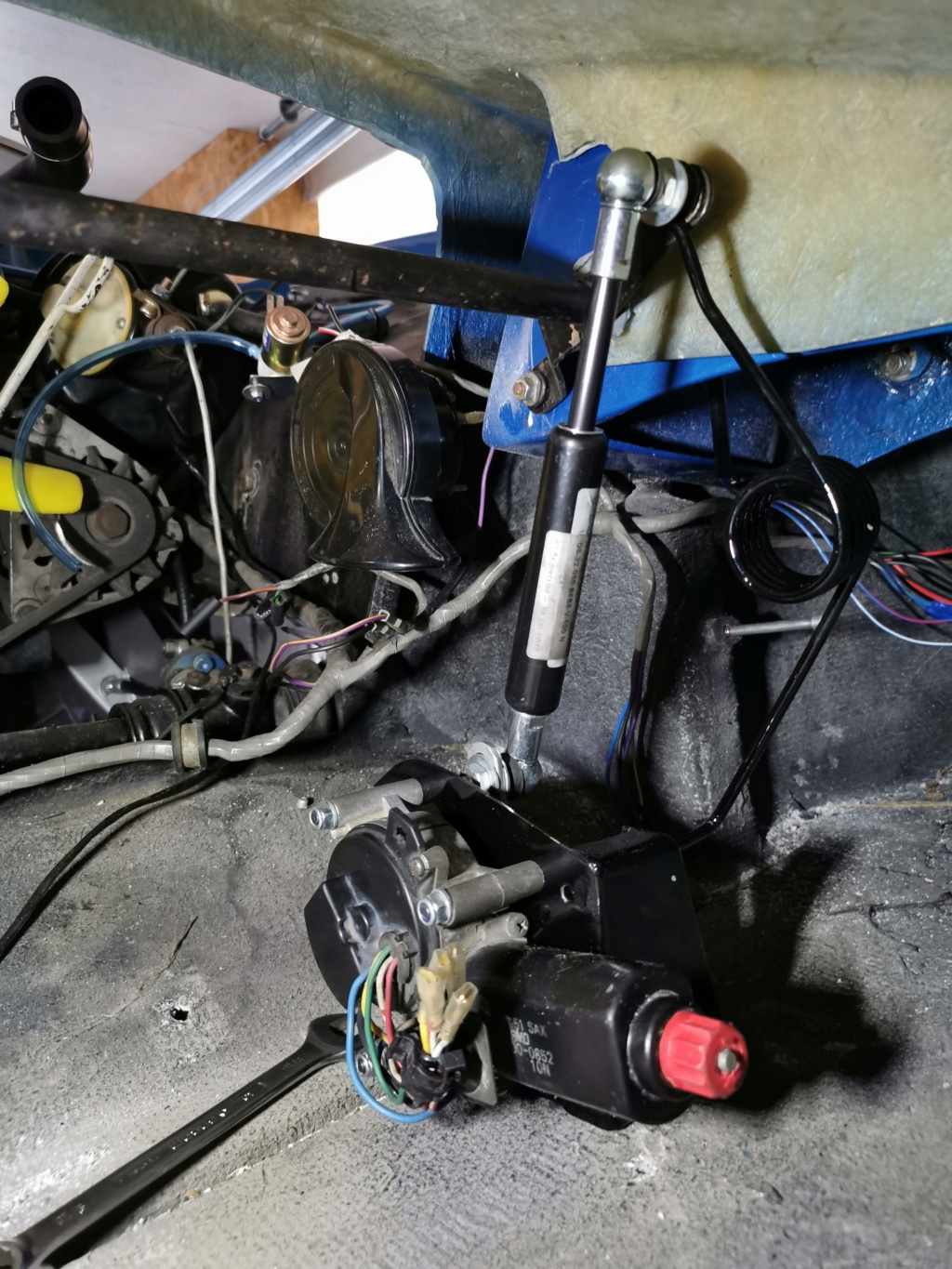

and I made the miata mx5 headlamp motor conversion basing photos i found on the forum !
I draught the frame drawing on a 5mm checkered paper if someone need to do the same
I used a gaz pressure cylinder instead of M8 threaded shaft
the cylinder disengage the motor action if headlamps don't want to be lifted





the motor rod has been modified in order to adjust the stroke
I have welded an extension part on it


url=https://servimg.com/view/14890497/3311]Image[/url]
mini90
First Gear
First Gear

Posts: 25
Joined: 05 Aug 2020
Location: france

PostPost by: JJ66 » Thu Oct 08, 2020 8:55 am

Very nice work! I guess you have used the gas strut in case the motor tries to lift the headlight but something is blocking it? Good idea.

The aluminum seat belt guides look good, my car is fitted with plastic guides from another car (don't know which one!).

It will be great to see the finished car. Keep up the good work.

Jonathan
JJ66
Second Gear
Second Gear

Posts: 70
Joined: 25 Feb 2020
Location: Ross on Wye
